Job Work

Precision CNC machining on a state-of-the-art Hartford PRO 3210 and heavy plate rolling in a new 3-Roll Schafer Plate Bending Machine — available as job work for external clients.

3150 × 2100 mmCNC Bed Size

8 TMax Work Piece Weight

CNC Machining

3-Axis CNC Vertical Machining Centre

BEV undertakes job work on its 3 axis CNC Vertical Machining Centre. Imported from Taiwan, machine of Hartford make, model PRO 3210 is state of the art in its class.

Parameter	Specification
Make / Model	Hartford PRO 3210 (imported from Taiwan)
Bed Size	3150 mm × 2100 mm
Spindle	BT50, 6000 rpm
Coolant	Through-coolant at 70 bar
Tool Changer	20-tool ATC
Controller	Fanuc
Special Attachments	Right angle milling head, automatic chip conveyor
Max Work Piece	3100 mm (L) × 2100 mm (W) × 780 mm (H) or 2100 mm (Dia) × 780 mm (H)
Max Weight	8 Tonnes

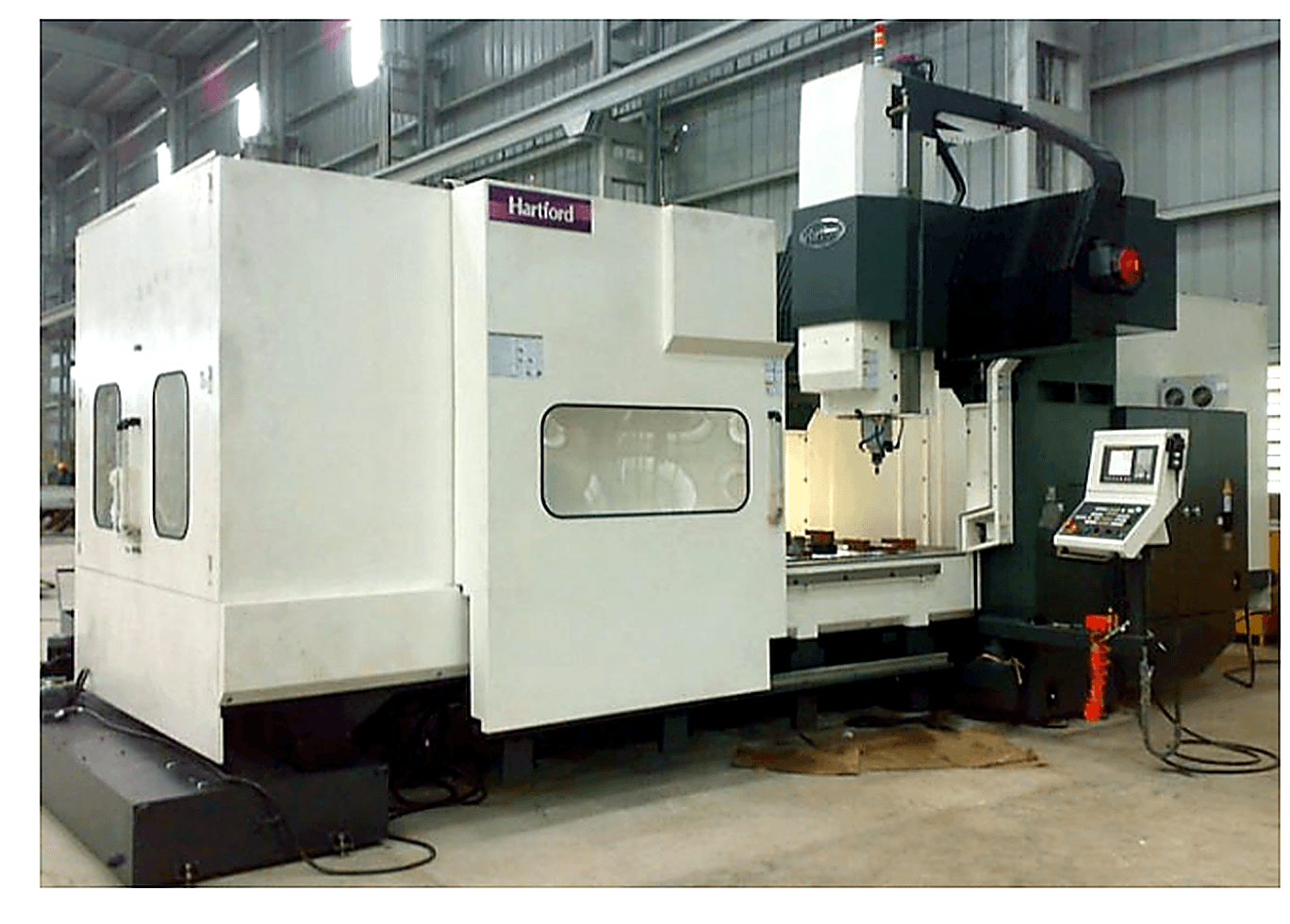

Hartford PRO 3210 CNC Vertical Machining Centre at BEV

Hartford PRO 3210 — 3-Axis CNC Vertical Machining Centre

Machining Capabilities

BEV has a complete range of tool holders, tools, carbide inserts and work piece holding jigs and clamps for various applications, including:

Drilling of tube sheets and baffle plates in any material, stacked or single, with various hole configurations
Milling of gasket grooves
Facing and tapping

Measuring instruments have valid calibration certificates traceable to NABL standards.

Software

BEV also has competent CNC machine operators with programming capability. Hartrol, SolidEdge and MasterCam software are used for modeling and programming. In short, you are assured of first world quality at your door step.

Plate Rolling

3-Roll Schafer Plate Bending Machine

BEV undertakes job work of plate rolling in its new 3 Roll Schafer Plate Bending Machine. The machine is capable of rolling 3.2 m wide plates up to 85 mm thickness (cold).

Parameter	Specification
Machine	3-Roll Schafer Plate Bending Machine
Max Width	3.2 m wide plates
Max Thickness (cold)	85 mm
Hot Rolling	Machine is hot rolling capable, though not yet tried
Min Diameter	726 mm
Straight Length Required	Twice the thickness at either end (leading as well as trailing)
Supply Condition	Plates to be supplied in beveled condition
Delivery Condition	Generally delivered rolled and tack welded; long seam welding available if required

Plate Rolling — Key Notes

The machine is hot rolling capable, though not yet tried. Smallest diameter that can be rolled is 726 mm.

The straight length required on either end (leading as well as trailing) is twice the thickness.

Plates to be supplied in beveled condition and will be generally delivered rolled and tack welded. If long seam welding is required, it could be done.
